A Modern Refresh for Your Classic First-Gen Mustang

There’s a real beauty in upgrading a classic without masking its character—and the Intellitronix Analog Gauge Panel AP7001 delivers exactly that for the 1965–1966 Ford Mustang. Designed to drop directly into the heart of your Pony’s cockpit, this panel brings modern instrumentation to the dash while still working with the original factory Mustang bezel.

Instead of replacing the character of the interior, it enhances what’s already there. The panel features a black polycarbonate subsurface with a brush-stroke finish and bold, modern typography that keeps every gauge easy to read at a glance. It’s a clean, contemporary update that sharpens the Mustang’s interior without disrupting the classic layout enthusiasts love.

All the Vital Signs—Front and Center

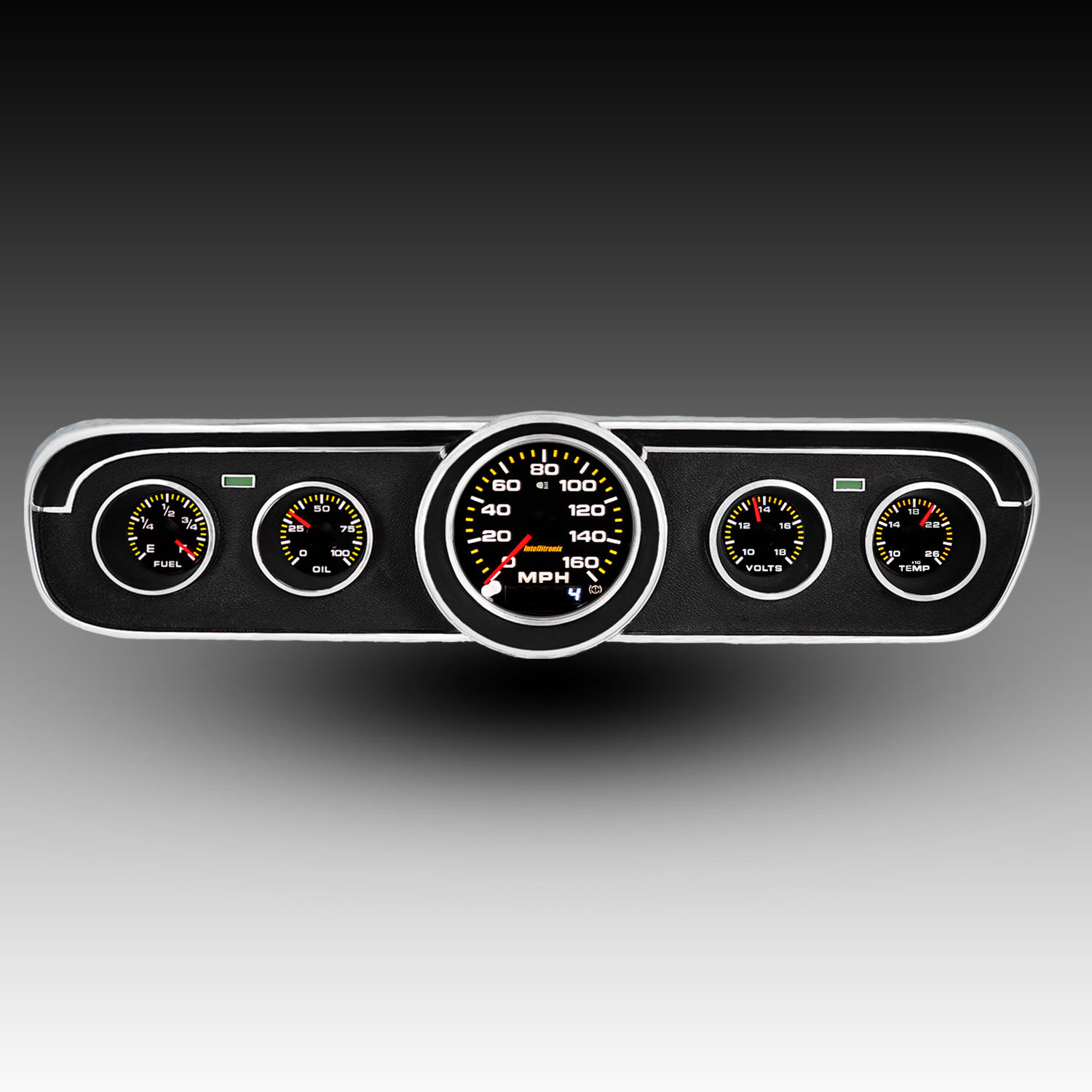

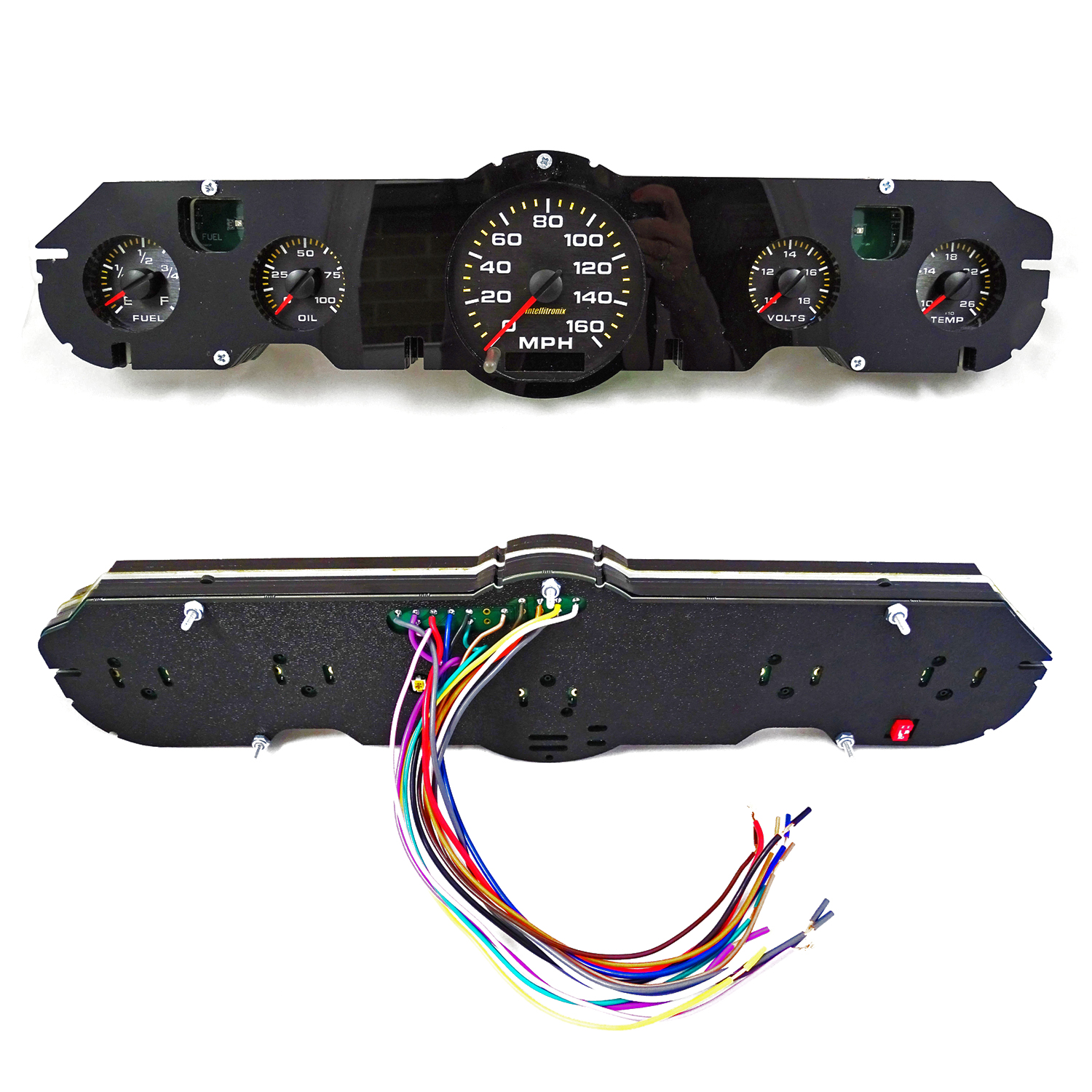

The Intellitronix Analog Gauge Panel Mustang delivers all the essential engine data in one compact cluster. The assembly includes a 160-MPH speedometer, fuel level gauge, voltmeter, oil pressure gauge, and water temperature gauge, all protected behind a clear acrylic faceplate. Mounting hardware and the required sending units are included, making installation refreshingly straightforward.

The speedometer brings modern capability to the classic analog format. With one-button calibration, it can be dialed in for virtually any tire size, rear gear ratio, or transmission setup. Built-in features include an odometer, trip meter, high-speed recall, 0–60 timer, and quarter-mile elapsed time—all accessed with the push of a button. It works with both mechanical and electronic transmissions, giving builders flexibility whether they’re running vintage components or modern drivetrain upgrades.

Modern Monitoring Behind the Dash

Supporting gauges provide accurate engine monitoring without cluttering the dashboard. The voltmeter reads from 10.0 to 18.0 volts and requires no sending unit. The oil pressure gauge reads 0–100 psi and includes the proper sender, while the water temperature gauge tracks engine heat from 100–260°F and includes its own sender as well.

Fuel monitoring is equally flexible. The programmable fuel gauge works with Ford and aftermarket 240–33 ohm fuel senders, making it compatible with a wide range of stock and upgraded fuel systems.

Built for Real Driving

Every Intellitronix Analog Gauge Panel Mustang ships with the sensors needed for installation, including the Ford speedometer sender, oil pressure sender, and water temperature sender. A 1/2-inch speedometer bushing is supplied as standard equipment, while builders who require a 3/8-inch bushing can request it during checkout.

For even greater accuracy, Intellitronix also offers an optional GPS speedometer sender. With a simple three-wire hookup and built-in GPS technology, it provides highly accurate speed readings unaffected by tire size or gear changes.

Designed for the First-Gen Mustang Cockpit

Tailored specifically for 1965–1966 Mustangs, the panel installs easily and features automatic nighttime dimming for comfortable visibility during evening cruises. It’s also backed by a lifetime warranty, giving Mustang owners confidence that the upgrade will last as long as the car itself.

The result is a bold, modern instrument cluster that refreshes the interior while allowing the original Mustang dash bezel to remain the centerpiece.
